UF-200kw Ultrahigh Frequency Quenching Machine

최소 주문 수량:	1
가격:	10000

상세 정보

제품 설명

상세 정보

모델 번호.:

UF-200KW

구조:

수직형

상표:

ORD

힘:

200KW

빈도:

50-150KHZ

자동 시간:

0.1-99.9s

수압:

0.2MPa 이상

작업 전압:

380V*3Phase 50-60HZ

작업 전압 범위:

340-430V

무게:

약 260kg

운송 패키지:

나무 상자

사양:

CE, SGS, ISO

등록 상표:

ORD

기원:

중국

HS코드:

8514400090

생산능력:

10, 000세트

강조하다:

UF-200kw induction heating machine

ultrahigh frequency quenching equipment

industrial induction heater with warranty

제품 설명

UltrahighÂ FrequencyÂ Induction Heating Machine UF-200KW:

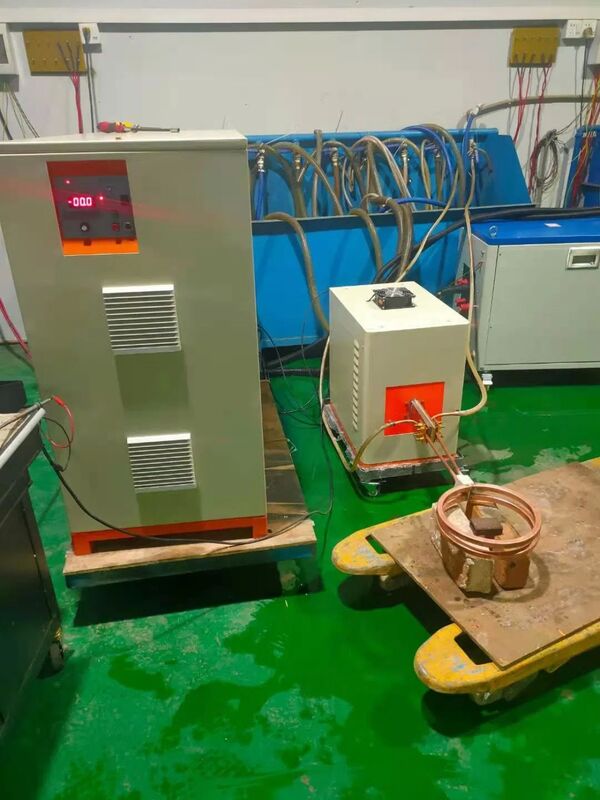

UF-200kw Ultrahigh Frequency Quenching Machine 0

1 Main characteristics:
This equipment adopts the IGBT inverter circuit, which has high load adaptability.
2 it has such features as high frequency, fast heating speed, high efficiency and easy operation.
3 As compared with other heating modes, it can significantly promote the economic benefits, improve the quality of heated work pieces and save the energy and material, alleviate labor intensity and improve the production environment Â
4 It has super small size, which can save the production space by 10 times
5 It is safe and reliable, and requires no equipments of ten thousand voltage,and thus can ensure the safe operation
6 The comprehensive full load design is available for 24-hour continuous operation.
IGBT UF induction heating equipment is widely used in the following industries:
(A)Â heat treatment industryÂ (hardening, annealing, tempering and stress relieving):
1. Hardware tools high-frequency hardening heat treatment, such as; vise, hammer, locking pliers, wrenches, screwdrivers
2. Variety of steam, motorcycle parts high-frequency hardening heat treatment, such as: crankshaft, connecting rod, piston pin, camshaft, valves, various gears within the gearbox, a variety of fork, all kinds of spineÂ shaft, drive axle, each high-frequency hardening heat treatment of the kinds of small shafts, crank pin, rocker arm, rocker shaft.
3. Hydraulic components, such as: a rotor of the plunger piston pump, rotor pump, various valves on the other to the heat treatment of high-frequency hardening of the shaft, the gear pump gears, etc.
4. Automotive, machinery and equipment, electric tools, gear, bearing high-frequency hardening heat treatment
5. Variety of woodworking tools, such as: ax, planer quenching
Wheels of a variety of automotive, motorcycle, marine and engineering equipment, machine axis IF quenching, large parts of the annealing, tempering and stress relieving.
(B)Â the welding industryÂ (brazing)
1. Welding of various turning tools, planer, milling machining and cutting tools
2. Welding of various diamond tools, such as: welding diamond saw blades, diamond drill
3. Various shaped drill head column Button Bits, drill Yan briquette, riveting rod drill carbide brazed
4. Various shearer teeth welding, various digging machine cutter welding
5. Various mechanical welding tools
Air conditioners, refrigerators, refrigeration system brass brazing, pipe brazing, as well as brass and aluminum tubes brazed
(C)Â forging industry
1. Heat pier variety of standard parts, non-standard parts, pieces of copper, steel and aluminum parts casting and forging
2. Hardware tools such as pliers, wrenches before forging heating
3. Solder with solder tail caudal peduncle cone drill head forging
4. A extrusion molding on the stainless steel container.
(D)Â the precious metal smelting industry
The sample melting of steel, iron, copper, aluminum and other tests, as well as gold, silver and other precious metals smelting
2 Parameter

Type	UF-200KW
Work power	3Ã—380V(415V,440V,480V)
The range of operating voltage	340-430v
Output power	200KW
Heating current	23-330A
Fluctuating frequency Â	50-150KHZ Â Â
Timing (Heat time,Â Retain time )	0.1-99.9S
The flow rate of cooling water Â	>0.2Mpa >5L/min
Water temperature protection point Â	40ÂºC
Duty cycle	100%(40degreeÂ room temperature)
Weight	160+100kg
Size	95Ã—53Ã—1000 cm 65Ã—34Ã—50 cm

Â Pre-saleÂ service:
1.Â recommendÂ theÂ mostÂ suitableÂ machineÂ forÂ customers,Â accordingÂ toÂ theirÂ requirements.Â
2.Â InquiryÂ andÂ consultingÂ support.Â
3.Â SampleÂ testingÂ support.Â
4.Â ViewÂ ourÂ Factory.

In-saleÂ service:
1.Â StrictlyÂ manufactureÂ theÂ machine,Â accordingÂ toÂ relevantÂ technicalÂ standards.
2.Â TakeÂ runÂ test,Â accordingÂ toÂ relevantÂ equipmentÂ testÂ runÂ regulations.
3.Â StrictlyÂ checkÂ upÂ theÂ machine,Â beforeÂ delivery
4.Â DeliveryÂ onÂ time.

After-saleÂ service:
1.Â Warranty time: Within 18Â monthsÂ from the date of delivering, 12months from date of receiving.
2.Â WithinÂ warranty all parts are free for customer,Â anyÂ faultÂ causedÂ byÂ non-artificialÂ reason,Â anyÂ qualityÂ problemsÂ suchÂ asÂ design,Â manufacture,Â orÂ procedureÂ occurs,Â We shallÂ provideÂ replacementÂ partsÂ afterÂ detectingÂ theÂ faults.
3.Â IfÂ anyÂ bigÂ qualityÂ problemsÂ occursÂ outÂ ofÂ theÂ guaranteeÂ period, we willÂ sendÂ maintenance
Â technicianÂ toÂ provideÂ visitingÂ serviceÂ afterÂ checkingÂ withÂ theÂ customerÂ andÂ chargeÂ forÂ aÂ favorableÂ price.Â
5.Â WeÂ willÂ provideÂ aÂ lifetimeÂ costÂ priceÂ toÂ theÂ buyerÂ withÂ theÂ materialsÂ andÂ spareÂ partsÂ usedÂ inÂ systemÂ operation,Â equipmentÂ maintenance.
6.Â TheÂ aboveÂ mentionedÂ areÂ onlyÂ basicÂ after-saleÂ serviceÂ requirements,Â weÂ willÂ makeÂ moreÂ promisesÂ relatedÂ toÂ qualityÂ assuranceÂ andÂ operationÂ guarantee.
