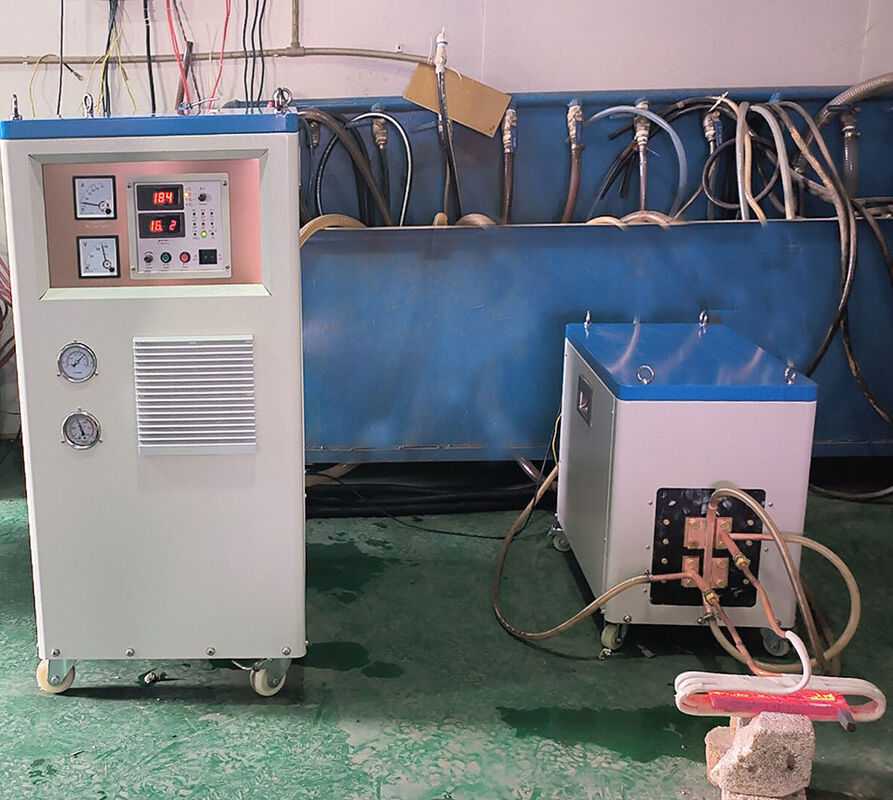

8-25Khz Audio Induction Heating Machine 100KW Induction Heater For Forging, Annealing
Â
Main characteristics:
1. Infineon module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
2. 100% Duty cycle, continuous working is allowed at maximum power output.
3. Simple to install, Installation can be done by unprofessional person very easily;
4. Double digital Screen display, better to know the working performance of the machine!
5. Energy Saving Up to 20-30% compare with SCR machine.
6. Diode Rectification Technology Make sure high power factory-0.98.
7. Soft Switch Technology And prefect Protection system( Over Heat, Over Current, Under Voltage, Over Voltage, Phase Fail, Lack Water) enhance Good Reliability.
Â
 Parameter
| Type | SF-Y-100KW |
| Work power | 380V/415V/440V/480V*3Phase 50-60HZ |
| Work Voltage | 380-460VAC |
| Output power | 100KW |
| Input current | 150A |
| Working Frequency | 8-25KHZ |
| The flow rate of cooling water | >0.1Mpa 14L/Min |
| Water temperature protection point | 50ºC |
| Duty cycle | 100% (40degree room temperature) |
| Weight |
Main parts:135KGS Transformer Parts: 98KGS |
| Size |
Main Part: 830*500x1100 mm Transformer :640x360x590 mm |
Â
Application:
Annealing (tempering and modulation):
1. Annealing of various stainless steel products, such as stainless steel basin, annealed and extruded can annealed folded edge, annealed sink, stainless steel tube, tableware and cup.
2. Annealing of various other metal work pieces, such as golf ball head, cue, brass lock, hardware copper fitting, kitchen knife handle, blade, aluminum pan, aluminum pail, aluminum radiator and various aluminum products.
Heating (hot forging, hot fitting and smelting):
1 Hot forging aims to fabricate the work pieces of certain temperature (different materials require different temperatures) into other shapes through forging press with the help of punch press, forging machine or other equipments, for instances, hot extrusion of watch case, watch flan, handle, mold accessory, kitchen and table ware, art ware, standard part, fastener, fabricated mechanical part, bronze lock, rivet, steel pin and pin.
Â
2. Hot fitting refers to the connection of different metals or metals with nonmetals through the heating based on the principle of hot expansion or hot smelting, for instances, embedded welding of copper core of computer radiator with aluminum sheet and speaker web, compound of steel and plastic tube, sealing of aluminum foil (tooth paste peel), motor rotor and sealing of tubular electric heating element.
Â
3. Smelting mainly aims to melt the metal into liquid by using the high temperature, which is mainly applicable to the smelting of iron, steel, copper, aluminum, zinc as well as various noble metals.
Â
Advantage
1. Using the third generation Infineon IGBT.
2. DELIXI Air Switch
3. All screws in our machine are stainless steel.
4. Phase Bridge (Germany IXYS)
5. Water Temperature and water Pressure meter in the machine,double protection for the machine.
